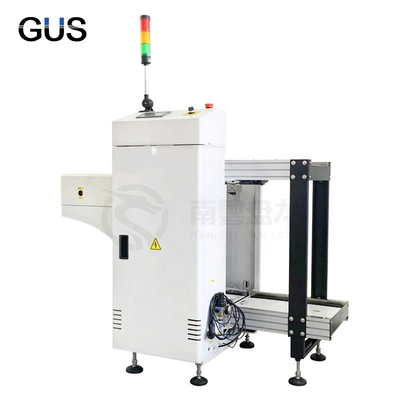

SMT PCB Assembly Production Line New Design Loader PCB Unloader For SMT SMD Production Line With Low Price

New design Loader PCB Unloader for SMT SMD Production Line with low price

Product performance

PRODUCT PERFORMANCE
1) Dimensions:1450(L)×750(W)×1650(H) mm
2) Special aluminum profile guide rail and special thousand bird type plastic chain
3)90W SPG brake motor drives ball screw to make Magazine stepping up and down
4) Pneumatic clamp frame structure.
5) Magazine specification is 320(W)×355(L)× 570(H) mm6) PCB specification is 60(W)× 60(L) mm-250(W)×340(L)
mm
7) Direction: From right to left/left to right
8) The pitch of the lifting platform is chosen to be 10,20,30,
40,
9) SIEMEN PLC programmable controller control.
10) With automatic closing function
11) Operation control panel is a color touch screen
12) Power is 0.25KW
13) Power supply:220V 50HZ
14) Gas source:4-6MPa PRODUCT PERFORMANCE
· Microcomputer control, stable and reliable work;
· Touch screen control panel allows multiple interfaces to be selected, and man-machine dialogue is convenient;
· Multiple sound and light alarm functions;
· Standard bin can be used, which is versatile and can be placed in three racks;
· The step height of the rack can be set according to the thickness of the PCB. The step can be divided into four types
(10,20,30,40mm);
· The built-in push-pull mechanism of the closing machine eliminates the need to buy separate board devices;
· With automatic counting function, it is convenient for pro-
duction statistics;
· Equipped with signal communication structure, it can be connected to other machines online.

Product displayFactory TourCompany strengthCompetitive price with good quality, and great after-sales service Training more than 500 experts and technician for customers.
Provides professional SMT solutions for the full line.
Shenzhen Nanyue Panlong Technology Co., Ltd. Expert in making customized high quality SMT LED Pick and Place Machine, SMT LED Reflow Oven, SMT LED Stencil Printer, SMT Production Line, LED Assembly Line, SMT LED Machines

Application fieldCertifications1. Are you a trading company or a manufacturer?
We are a professional manufacturer specializing in SMT production lines, including SMT placement machines, reflow ovens, solder paste printers and other SMT line assembly machines. Provide OEM & ODM services. Please feel free to let us know your request.
2. What is the shipping method?
These are heavy machines. We recommend that you use a cargo ship.
But the parts used to repair the machine can be transported by air.
3. How is the warranty?
We support a one-year warranty. We will update the software for our customers on a regular basis. If you have any questions during the operation of the machine, please feel free to contact us. We will help you in time.
4. What is your delivery date?
The delivery date is approximately 35 days after payment is received.
5. What is your payment terms?
30% deposit in advance and 70% balance before shipment.
6. What is your main customer?
Huawei, Foxconn, Vtech, Sumita, Kemet, Vishay, Bosch, Canon.
7. Why choose us?
China's leading SMT supplier; trade margin of more than 560,000 US
